Description
- Modular Stacking Capacity: Expandable battery capacity from 5.12kWh, 10.24kWh, up to 15.36kWh to match household energy usage.
- High-Yield 450V MPPT Controller: Accommodates up to 6000W PV arrays with a wide 60-360VDC MPPT tracking range.

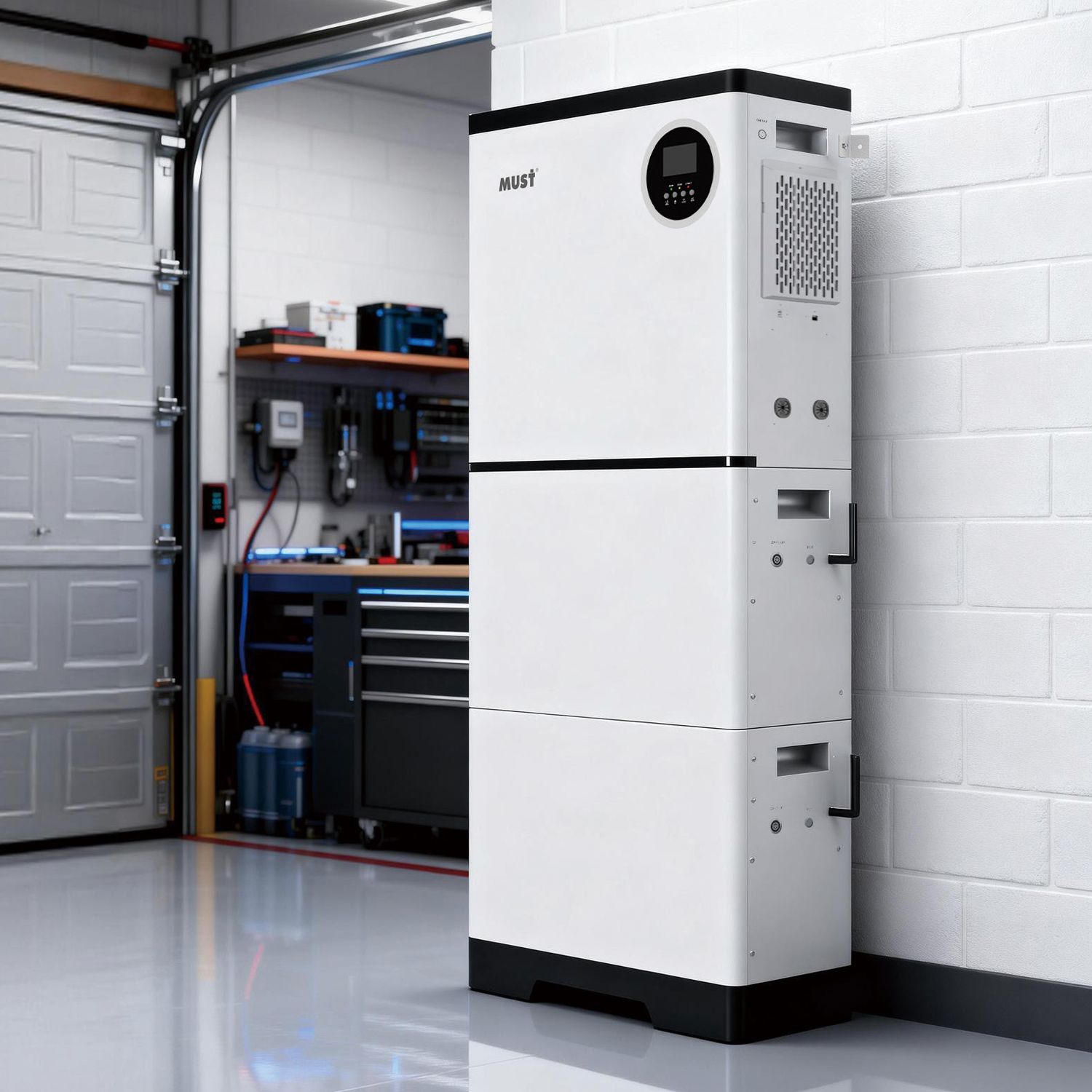

- Integrated Space-Saving Enclosure: Compact footprint suitable for wall-adjacent and indoor corner placement, eliminating visible cables.
- Advanced Inverter Safety & BMS: IP21 thermal design, complete electronic protection, and WiFi connectivity for smart app monitoring.
| Parameter | HBP18-5548 ES |
| Nominal Battery System Voltage | 51.2VDC |
| Inverter Rated Power | 5500VA / 5500W |
| Output Waveform & AC Voltage | Pure Sine Wave, 230VAC (10%-18%), 50/60Hz ±0.5Hz |
| Peak Inverter Efficiency | >95% (Rated R-load, battery fully charged) |
| Max PV Array Power / VOC | 6000W / 450VDC (Max Input Current: 28A) |
| PV Array MPPT Voltage Range | 60-360VDC |
| Max Solar / AC Charge Current | Solar: 100A; AC: 100A; Combined: 100A |
| Modular Battery Storage | 51.2V LiFePO4 (100Ah / 200Ah / 300Ah): 5120Wh / 10240Wh / 15360Wh |
| Transfer Time | 10ms typical (UPS), 20ms typical (APL) |
| System Dimensions (WHD) | 594 x 1017 x 237 mm (5.12kWh) / 1400 mm (10.24kWh) / 1777 mm (15.36kWh) |
| Single Module Dimensions | Inverter: 594 x 560 x 237 mm; Battery: 594 x 380 x 237 mm |
| Standard Warranty | Inverter: 2 Years; Lithium Battery: 5 Years |
