Description

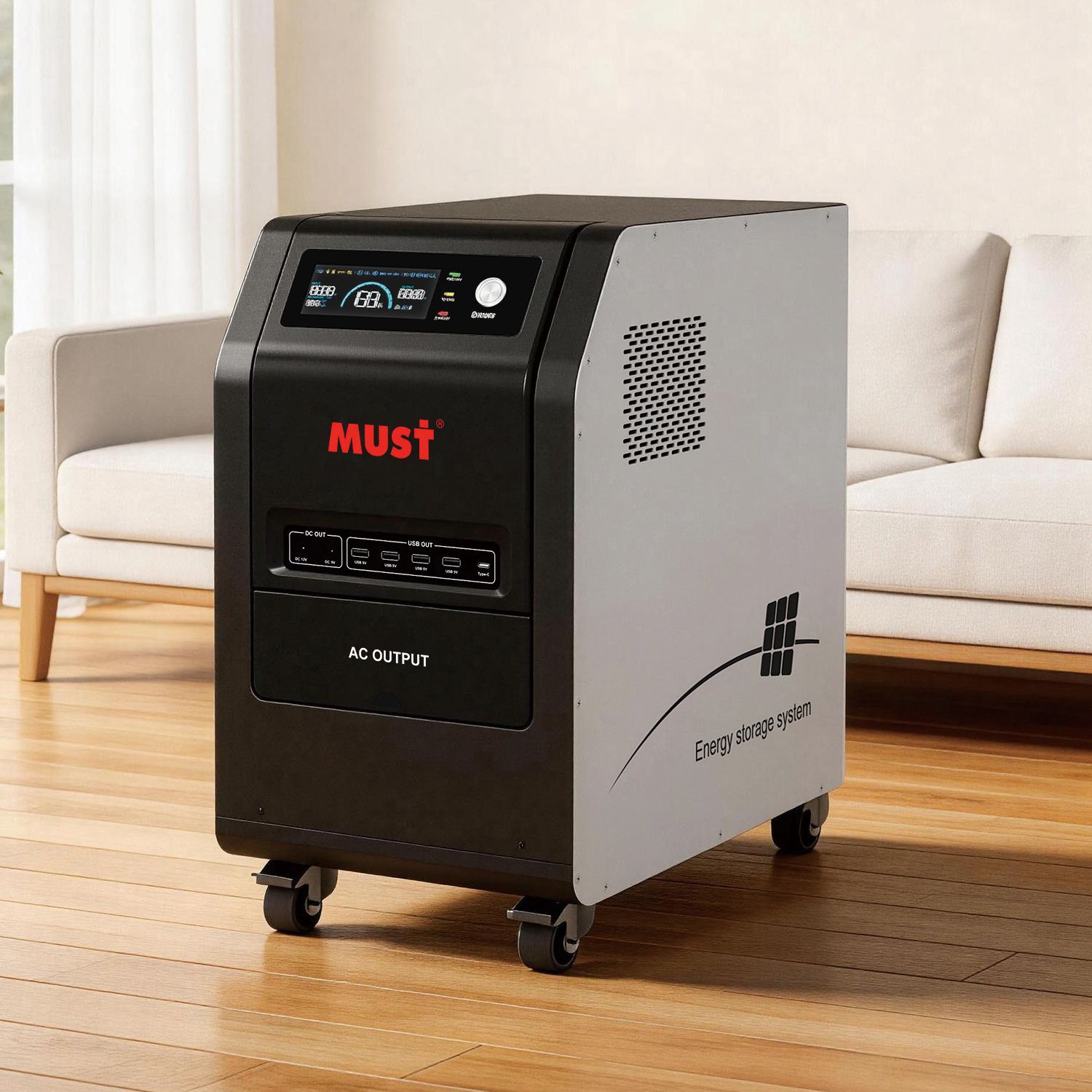

- Powerful Appliance Support: 3KW / 5.2KW pure sine wave inverter easily drives heavy domestic loads and inductive appliances.
- High-Yield Solar Harvesting: Up to 5000W PV solar input with wide MPPT tracking range (150-430VDC) and 450V VOC capability.
- 24/7 Uninterrupted UPS Protection: Fast 10ms transfer time guarantees zero downtime for essential electronics during utility failure.
- 11 Multi-Device Output Matrix: Equipped with 4 AC sockets, 1 Type-C port, 4 USB-A (5V/2.4A), and 2 USB-A (12V/1A) ports.
- Smart App Remote Management: Supports mobile app connectivity, real-time data monitoring, and smart BMS diagnostics.
| Parameter | HBP18-3024MT | HBP18-5248MT |
| Nominal Battery System Voltage | 24VDC | 48VDC |
| Rated Inverter Power | 3000W (Peak Efficiency: 90%) | 5200W (Peak Efficiency: 93%) |
| Output Waveform & AC Voltage | Pure Sine Wave, 230VAC ±5%, 50/60Hz (±0.2Hz) | Pure Sine Wave, 230VAC ±5%, 50/60Hz (±0.2Hz) |
| Max PV Array Power | 1800W | 5000W |
| MPPT Operating Voltage / Max VOC | 30-128VDC / 160VDC | 150-430VDC / 450VDC |
| Max Solar / AC Charge Current | Solar: 60A; AC: 60A; Combined: 120A | Solar: 100A; AC: 80A; Combined: 100A |
| Battery Capacity & Energy | 25.6V 120Ah (3072Wh) | 51.2V 100Ah (5120Wh) |
| Battery Cycle Life | 6000+ Cycles @ 80% DOD, 25°C | 6000+ Cycles @ 80% DOD, 25°C |
| Transfer Time | 10ms typical (UPS), 20ms (APL) | 10ms typical (UPS), 20ms (APL) |
| Dimensions (WHD) | 277 x 509 x 452 mm | 302 x 628 x 493 mm |
| Net Weight | 37 kg | 56 kg |
| Certifications & Warranty | CE, ISO; Inverter: 2 Years, Battery: 5 Years | CE, ISO; Inverter: 2 Years, Battery: 5 Years |
