Description
Covering rated power outputs from 1.5 kW up to 6 kW with storage capacities of 7.68 kWh (24V system) and 15.36 kWh (48V system), the HBP3000 LV Series features a modular stackable design that separates the inverter host from the battery module for easy two-person handling and clean installation. With dual output capabilities (terminal blocks plus a direct 10A socket), an ultra-fast 10ms transfer time, built-in generator auto-start compatibility, and intelligent BMS real-time protection, the system guarantees clean, continuous, and independent power security.
Key Features
-
Tailored for 120Vac Low-Voltage Grid Standards:
-
Delivers clean 110V/115V/120Vac (±10%) pure sine wave output, engineered with an input range of 96–132Vac to match standard 120V electrical infrastructure.
-
Features 88% peak inverter efficiency and ultra-low standby self-consumption (< 2W) for quiet, energy-efficient daily operation.
-
-

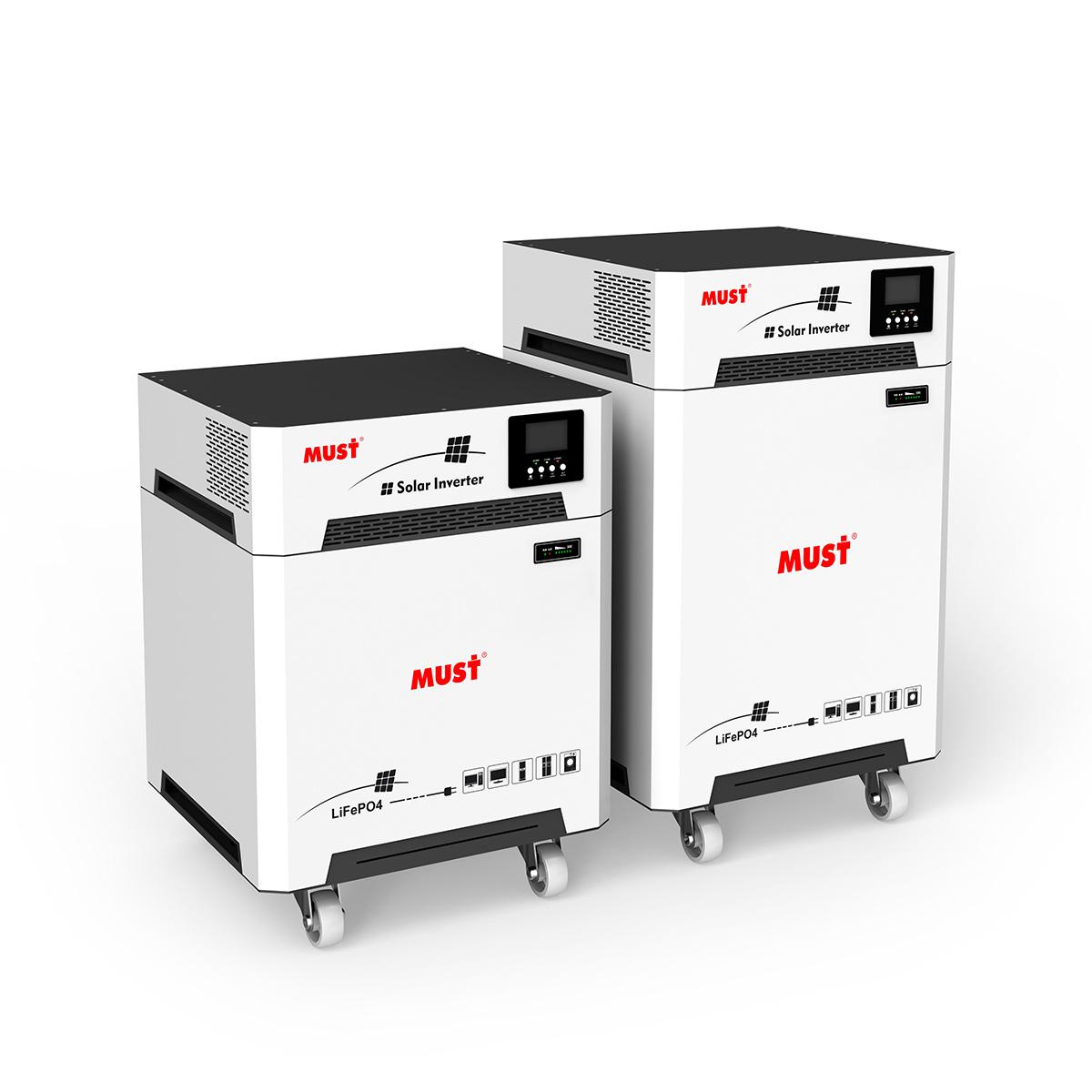

Modular Stackable Architecture & Easy Installation:
-
Vertical two-box stackable structure separates the inverter from the battery block, enabling convenient handling, fast floor-mounted assembly, and effortless maintenance.
-
Eliminates messy external cabling, creating a compact footprint that fits seamlessly in utility rooms, basements, or garage corners.
-
-
Large-Capacity & Reliable LiFePO4 Battery:
-
Integrated with premium 300Ah lithium iron phosphate (LiFePO4) cells for superior thermal and chemical stability.
-
Delivers 7,680 Wh or 15,360 Wh of energy storage, capable of delivering a maximum continuous charge/discharge current of 200A for heavy household loads.
-
-
High-Yield 80A MPPT Solar Charge Controller:
-
Built-in 80A MPPT controller achieves up to 98% conversion efficiency to capture maximum photovoltaic energy throughout the day.
-
Accepts high PV open-circuit array voltages up to 245Vdc with broad MPPT tracking ranges (30–230Vdc for 24V models; 60–230Vdc for 48V models), supporting up to 2,500W or 5,000W PV arrays.
-
-

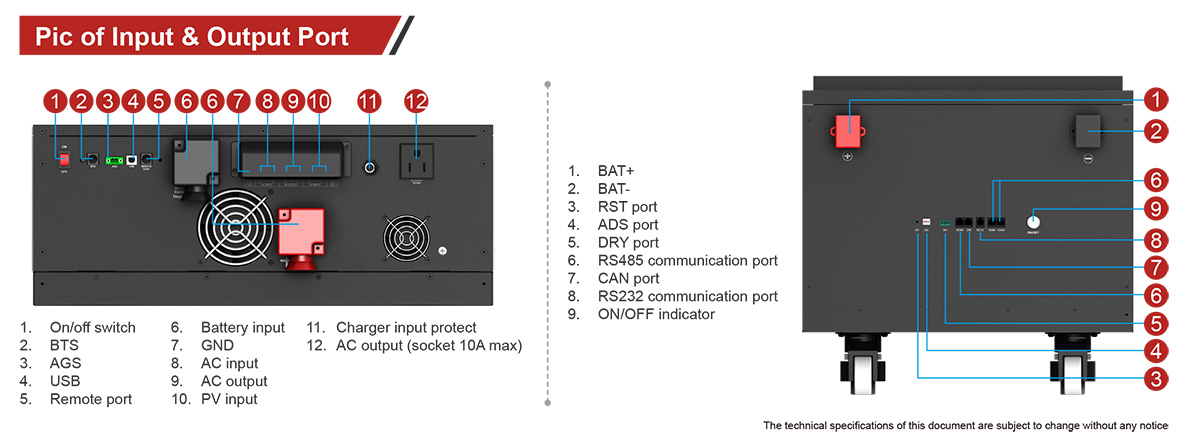

Dual AC Output for Intelligent Load Distribution:
-
Equipped with both hardwired terminal connections and an integrated standard AC socket (10A max).
-
Facilitates smart load management by isolating critical emergency devices from secondary appliances, maximizing runtime during power cuts.
-
-
UPS-Class 10ms Seamless Transfer & Generator Auto-Start:
-
Ultra-fast line-to-battery transfer speed of ≤ 10ms ensures computers, network equipment, and sensitive electronics remain powered without interruption.
-
Includes a dedicated generator auto-start interface, allowing automatic auxiliary power triggering during prolonged grid failures or bad weather.
-
-
Smart BMS Protection & Certified Safety:
-
Integrated Battery Management System (BMS) continuously monitors voltage, temperature, and current across all cells in real time.
-
Fully compliant with CE-EMC standards and backed by a 2-year warranty on the inverter and a 5-year warranty on the lithium battery module.
-
Technical Specifications
| Category | Parameter | HBP30-1524 LV | HBP30-2024 LV | HBP30-3024 LV | HBP30-5048 LV | HBP30-6048 LV |
| Inverter AC Output | Rated Output Power | 1,500 W | 2,000 W | 3,000 W | 5,000 W | 6,000 W |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| Output Voltage Regulation | 110V / 115V / 120Vac ± 10% | 110V / 115V / 120Vac ± 10% | 110V / 115V / 120Vac ± 10% | 110V / 115V / 120Vac ± 10% | 110V / 115V / 120Vac ± 10% | |
| Output Frequency | 50 Hz / 60 Hz (±0.2 Hz) | 50 Hz / 60 Hz (±0.2 Hz) | 50 Hz / 60 Hz (±0.2 Hz) | 50 Hz / 60 Hz (±0.2 Hz) | 50 Hz / 60 Hz (±0.2 Hz) | |
| Peak Inverter Efficiency | 88% | 88% | 88% | 88% | 88% | |
| Nominal DC Input Voltage | 24 Vdc | 24 Vdc | 24 Vdc | 48 Vdc | 48 Vdc | |
| Standby Consumption | < 2 W | < 2 W | < 2 W | < 2 W | < 2 W | |
| AC Output Interface | Terminal & Socket (10A max) | Terminal & Socket (10A max) | Terminal & Socket (10A max) | Terminal & Socket (10A max) | Terminal & Socket (10A max) | |
| Solar PV Input (MPPT) | Max. Solar Power Input | 2,500 W | 2,500 W | 2,500 W | 5,000 W | 5,000 W |
| PV Max. Charging Current | 80 A | 80 A | 80 A | 80 A | 80 A | |
| Combined Charging Current | 80 A | 80 A | 80 A | 80 A | 80 A | |
| Max. MPPT Efficiency | 98% Max. | 98% Max. | 98% Max. | 98% Max. | 98% Max. | |
| PV Array Open Circuit Voltage (Voc) | 245 Vdc | 245 Vdc | 245 Vdc | 245 Vdc | 245 Vdc | |
| PV Array MPPT Voltage Range | 30 – 230 Vdc | 30 – 230 Vdc | 30 – 230 Vdc | 60 – 230 Vdc | 60 – 230 Vdc | |
| AC Input & Utility Charger | Nominal AC Input Voltage | 120 Vac ± 5% | 120 Vac ± 5% | 120 Vac ± 5% | 120 Vac ± 5% | 120 Vac ± 5% |
| Acceptable Voltage Range | 96 – 132 Vac | 96 – 132 Vac | 96 – 132 Vac | 96 – 132 Vac | 96 – 132 Vac | |
| Nominal Input Frequency | 50 Hz / 60 Hz (Auto Detection) | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | |
| Transfer Time | ≤ 10 ms (Max.) | ≤ 10 ms (Max.) | ≤ 10 ms (Max.) | ≤ 10 ms (Max.) | ≤ 10 ms (Max.) | |
| AC Charging Current (@ Nominal Voltage) | 25 A | 30 A | 40 A | 35 A | 40 A | |
| Charging Algorithm | 4-step (Lithium) | 4-step (Lithium) | 4-step (Lithium) | 4-step (Lithium) | 4-step (Lithium) | |
| Lithium Battery Module | Total Battery Energy | 7,680 Wh (7.68 kWh) | 7,680 Wh (7.68 kWh) | 7,680 Wh (7.68 kWh) | 15,360 Wh (15.36 kWh) | 15,360 Wh (15.36 kWh) |
| Nominal Battery Voltage | 25.6 Vdc | 25.6 Vdc | 25.6 Vdc | 51.2 Vdc | 51.2 Vdc | |
| Battery Rated Capacity | 300 Ah | 300 Ah | 300 Ah | 300 Ah | 300 Ah | |
| Standard Charge / Discharge Current | 100 A / 150 A | 100 A / 150 A | 100 A / 150 A | 100 A / 150 A | 100 A / 150 A | |
| Max. Continuous Current | 200 A | 200 A | 200 A | 200 A | 200 A | |
| Operating Temperature | Charging: -10°C to 50°C | Discharging: -20°C to 55°C | |||||
| Dimensions & Packaging | Machine Dimensions (W×H×D) (Inverter + Battery) | 600 × 617 × 470 mm | 600 × 617 × 470 mm | 600 × 617 × 470 mm | 600 × 754 × 470 mm | 600 × 754 × 470 mm |
| Inverter Package Dimensions (W×H×D) | 707 × 315 × 575 mm | 707 × 315 × 575 mm | 707 × 315 × 575 mm | 707 × 315 × 575 mm | 707 × 315 × 575 mm | |
| Battery Package Dimensions (W×H×D) | 700 × 590 × 585 mm | 700 × 590 × 585 mm | 700 × 590 × 585 mm | 700 × 710 × 590 mm | 700 × 710 × 590 mm | |
| Warranty & Certifications | Standard Warranty | Inverter: 2 Years | Lithium Battery: 5 Years | Inverter: 2 Years | Lithium Battery: 5 Years | Inverter: 2 Years | Lithium Battery: 5 Years | Inverter: 2 Years | Lithium Battery: 5 Years | Inverter: 2 Years | Lithium Battery: 5 Years |
| Certification Standards | CE-EMC | CE-EMC | CE-EMC | CE-EMC | CE-EMC |
